AlphaRiser FR
AlphaRiser FR has a unique drop-bracket system which allows the GRP floor to be lowered to enabled it to be filled with a fire-rated structural compound the provides more than 240 minutes of horizontal fire protection whilst maintaining structural floor strength.
Why use AlphaRiser FR?
Image Gallery
Downloads and Product Support
NBS Specification
Associated Products
Contact Us
Why use AlphaRiser Fire Rated Riser?
- Eliminate risk of falls by ensuring the void is permanently covered from the outset.
- Eliminate the need for temporary shuttering and edge protection.
- Achieve in excess of 240 minutes horizontal fire stopping.
- Simple and fast installation.
- GRP solid top grating is simple to cut for MEP services penetrations and avoids the need for hot-works permits.
- Maintains the benefits of adjustable joist structure for accommodation changes to MEP positioning.
Image Gallery
Sectional View
Request Drawing Details Pack
AlphaRiser FR – Fire-Rated Riser Support System
Fire Compliance:
Designed for buildings requiring floor-to-floor compartmentation. Fully tested to BS EN 1366-3:2021, achieving 240 minutes fire resistance (integrity & insulation) – double the standard requirement.
Construction Safety:

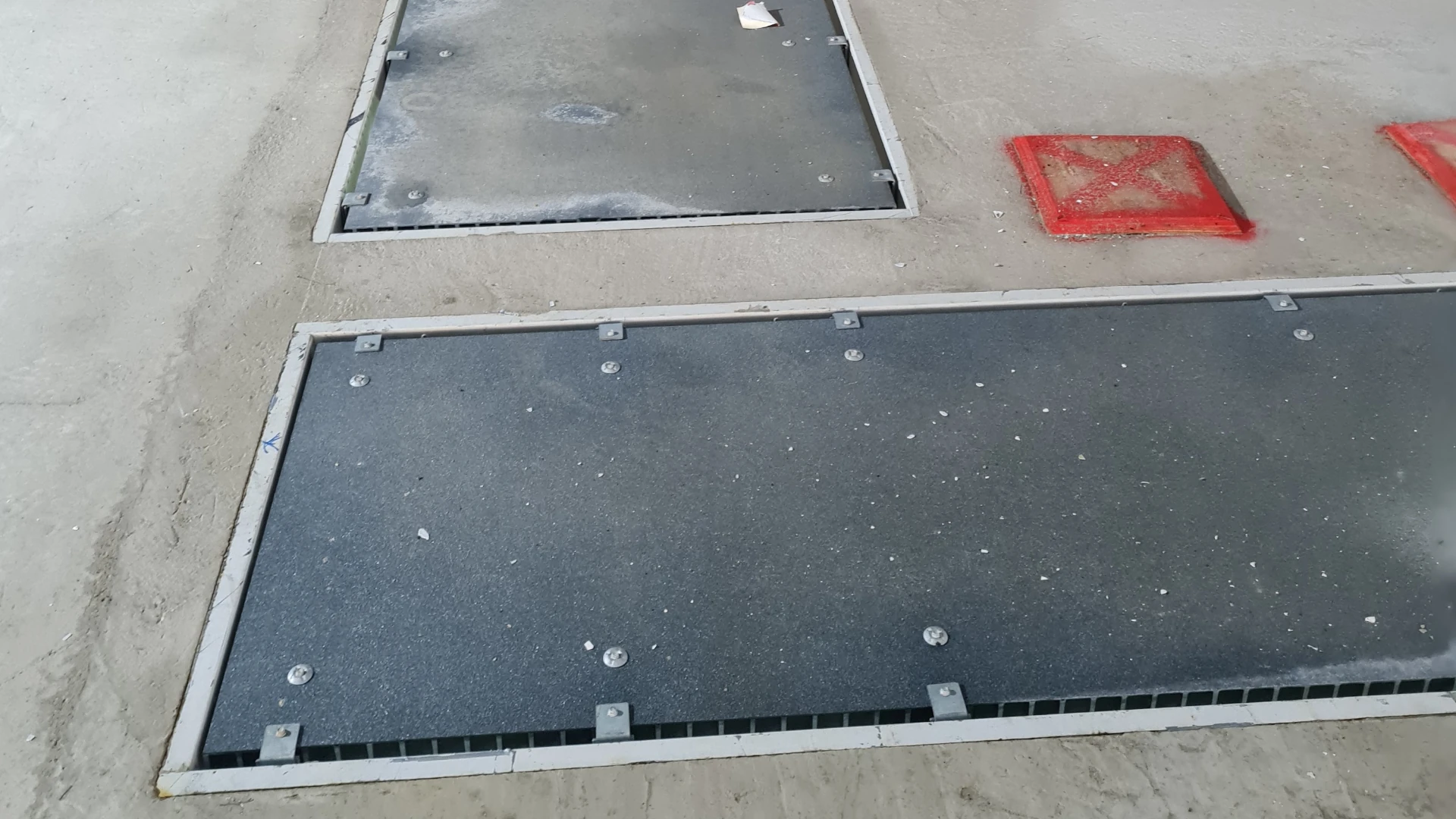

Joist end brackets allow initial grating installation at Structural Slab Level (SSL), eliminating trip hazards. Grating is later lowered by 100mm once services are complete.
Deck Surface:

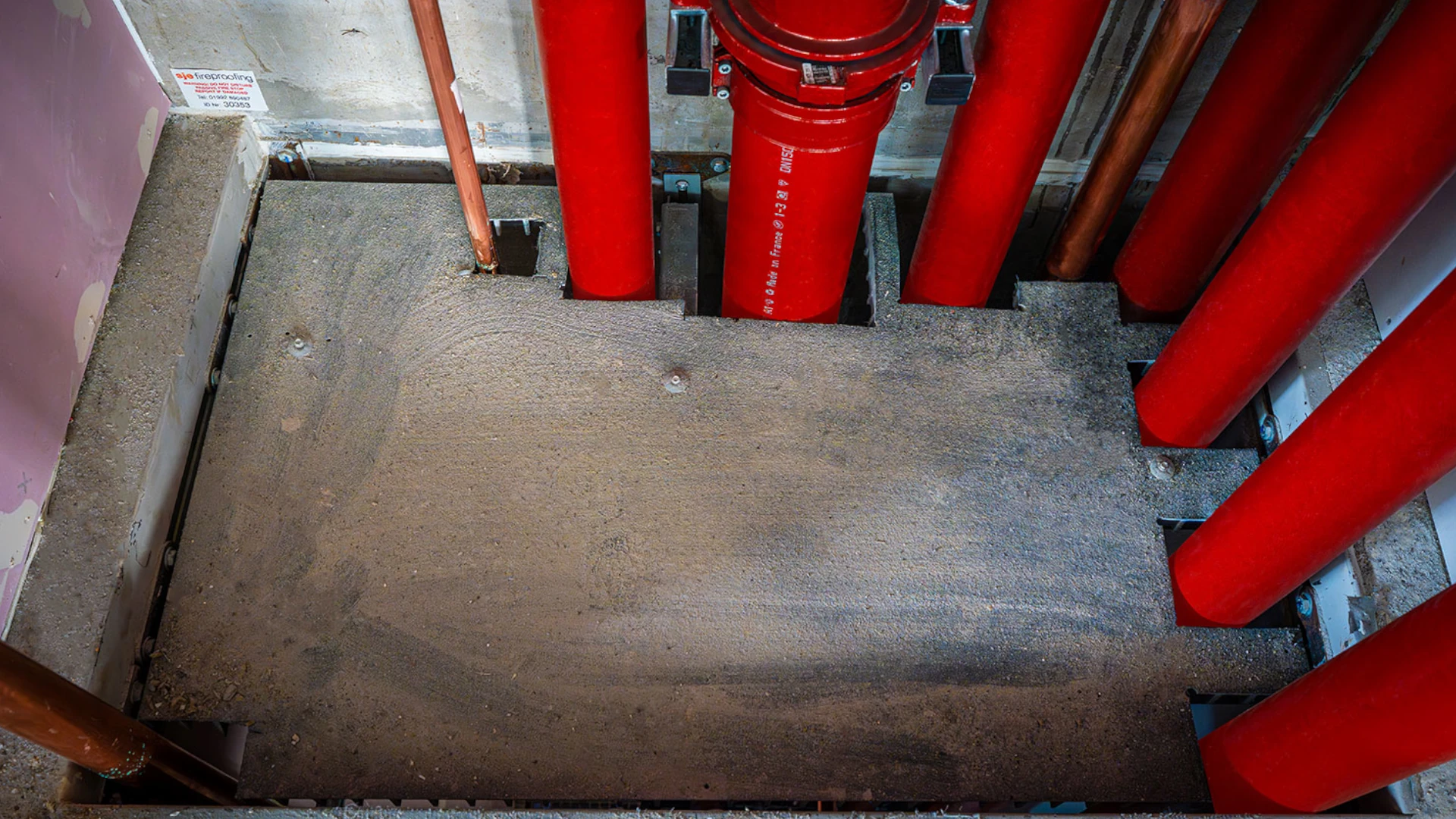

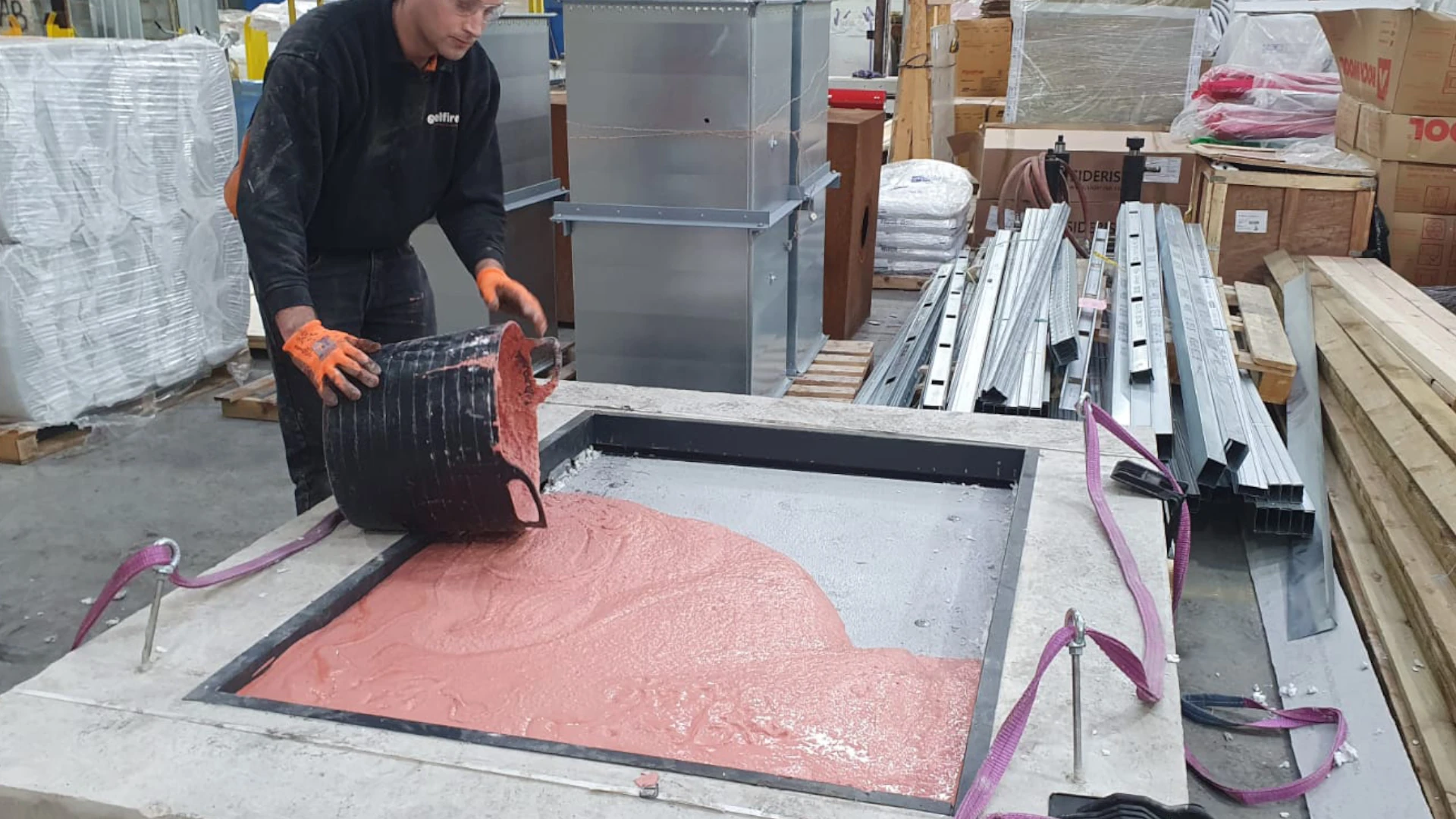

Uses solid top GRP grating for a closed surface. Edges and service gaps are sealed with fireproof caulking, and a fireproofing compound is poured into the slab recess.
Sacrificial Components:
GRP grating and supports are sacrificial in fire events. Structural support is maintained by the slab, not the fire compound.
Firestopping Integration:
Compatible with Quelfire QF2 compound and other UL-certified firestopping products for a complete solution.
Documentation:
Warringtonfire test report and UL certification available on request.
